The ongoing evolution of variants of concern and interest of SARS-CoV-2 in Brazil revealed by convergent indels in the amino (N)-terminal domain of the Spike protein

The ongoing evolution of variants of concern and interest of SARS-CoV-2 in Brazil revealed by convergent indels in the amino (N)-terminal domain of the Spike protein

Paola Cristina Resende 1a, Felipe G Naveca 2a, Roberto D. Lins 3, Filipe Zimmer Dezordi 4,5, Matheus V. F. Ferraz 3,6, Emerson G. Moreira 3,6, Danilo F. Coêlho 3,6, Fernando Couto Motta 1, Anna Carolina Dias Paixão 1, Luciana Appolinario 1, Renata Serrano Lopes 1, Ana Carolina da Fonseca Mendonça 1, Alice Sampaio Barreto da Rocha 1, Valdinete Nascimento 2, Victor Souza 2, George Silva 2, Fernanda Nascimento 2, Lidio Gonçalves Lima Neto 7, Irina Riediger 8, Maria do Carmo Debur 8, Anderson Brandao Leite 9, Tirza Mattos 10, Cristiano Fernandes da Costa 11, Felicidade Mota Pereira 12, Ricardo Khouri 13, André Felipe Leal Bernardes 14, Edson Delatorre 15b, Tiago Gräf 16b, Marilda Mendonça Siqueira 1b, Gonzalo Bello 17b, and Gabriel L Wallau 4,5b on behalf of Fiocruz COVID-19 Genomic Surveillance Network.

1. Laboratory of Respiratory Viruses and Measles (LVRS), Instituto Oswaldo Cruz, FIOCRUZ-Rio de Janeiro, Brazil.

2. Laboratório de Ecologia de Doenças Transmissíveis na Amazônia (EDTA), Instituto Leônidas e Maria Deane, FIOCRUZ-Amazonas, Brazil.

3. Department of Virology, Instituto Aggeu Magalhães, FIOCRUZ-Pernambuco, Brazil.

4. Departamento de Entomologia, Instituto Aggeu Magalhães, FIOCRUZ-Pernambuco, Brazil.

5. Núcleo de Bioinformática (NBI), Instituto Aggeu Magalhães FIOCRUZ-Pernambuco, Brazil.

6. Department of Fundamental Chemistry, Federal University of Pernambuco, Recife, Brazil

7. Laboratório Central de Saúde Pública do Estado do Maranhão (LACEN-MA), Brazil.

8. Laboratório Central de Saúde Pública do Estado do Paraná (LACEN-PR), Brazil.

9. Laboratório Central de Saúde Pública do Estado do Alagoas (LACEN-AL), Brazil.

10. Laboratório Central de Saúde Pública do Amazonas (LACEN-AM), Brazil.

11. Fundação de Vigilância em Saúde do Amazonas, Brazil.

12. Laboratório Central de Saúde Pública do Estado da Bahia (LACEN-BA), Brazil.

13. Laboratório de Enfermidades Infecciosas Transmitidas por Vetores, Instituto Gonçalo Moniz, FIOCRUZ-Bahia, Brazil.

14. Laboratório Central de Saúde Pública do Estado de Minas Gerais (LACEN-MG).

15. Departamento de Biologia. Centro de Ciências Exatas, Naturais e da Saúde, Universidade Federal do Espírito Santo, Alegre, Brazil.

16. Plataforma de Vigilância Molecular, Instituto Gonçalo Moniz, FIOCRUZ-Bahia, Brazil.

17. Laboratório de AIDS e Imunologia Molecular, Instituto Oswaldo Cruz, FIOCRUZ-Rio de Janeiro, Brazil.

a, b These authors contributed equally to this work.

Abstract

Mutations at both the receptor-binding domain (RBD) and the amino (N)-terminal domain (NTD) of the SARS-CoV-2 Spike (S) glycoprotein can alter its antigenicity and promote immune escape. We identified that SARS-CoV-2 lineages circulating in Brazil with mutations of concern in the RBD independently acquired convergent deletions and insertions in the NTD of the S protein, which altered the NTD antigenic-supersite and other predicted epitopes at this region. These findings support that the ongoing widespread transmission of SARS-CoV-2 in Brazil is generating new viral lineages that might be more resistant to neutralization than parental variants of concern.

Background

Recurrent deletions in the amino (N)-terminal domain (NTD) of the spike (S) glycoprotein of SARS-CoV-2 has been identified during long-term infection of immunocompromised patients 1–4 as well as during extended human-to-human transmission 3. Most of those deletions (90%) maintain the reading frame and cover four recurrent deletion regions (RDRs) within the NTD at positions 60-75 (RDR1), 139-146 (RDR2), 210-212 (RDR3), and 242-248 (RDR4) of the S protein 3. The RDRs that occupy defined antibody epitopes within the NTD and RDR variants might alter antigenicity 3. Interestingly, the RDRs overlap with four Indel Regions (IR) at the NTD (IR-2 to IR-5) that are prone to gain or lose short nucleotide sequences during sarbecoviruses evolution both in animals and humans 5,6.

Since late 2020, several more transmissible variants of concern (VOCs) and also variants of interest (VOI) with convergent mutations at the receptor-binding domain (RBD) of the S protein (particularly E484K and N501Y) arose independently in humans 7,8. Some VOCs also displayed NTD deletions like lineages B.1.1.7 (RDR2 𝚫144), B.1.351 (RDR4 𝚫242-244), and P.3 (RDR2 𝚫141-143) that were initially detected in the United Kingdom, South Africa, and the Philippines, respectively 3. The VOCs B.1.1.7 and B.1.351 are resistant to neutralization by several anti-NTD monoclonal antibodies (mAbs) and NTD deletions at RDR2 and RDR4 are crucial for such phenotype 9–14. Thus, NTD mutations and deletions represent an important mechanism of immune evasion and accelerate SARS-CoV-2 adaptive evolution in humans.

Several SARS-CoV-2 variants with mutations in the RBD have been described in Brazil, including the VOC P.1 15 and the VOIs P.2 16 and N.9 17. The VOC P.1 also displayed NTD mutations (L18F) that abrogate binding of some anti-NTD mAbs 14, but none of those variants displayed indels in the NTD. Importantly, although VOC P.1 showed reduced binding to RBD-directed antibodies, it is more susceptible to anti-NTD mAbs than other VOCs 9–14. In this study, we monitored and characterized the emergence of RDR variants within VOC and VOI circulating in Brazil that were genotyped by the Fiocruz COVID-19 Genomic Surveillance Network between November 2020 and February 2021.

Results

Our genomic survey identified 11 SARS-CoV-2 sequences from five different Brazilian states (Amazonas, Bahia, Maranhao, Parana, and Rondonia) that harbor a variable combination of mutations in the RBD (K417T, E484K, N501Y) and indels in the NTD of the S protein (Table 1). One VOI P.2 sequence and one VOC P.1 sequence displayed a convergent amino acid deletion 𝚫144 in the RDR2, while two VOC P.1 sequences displayed a four amino acid deletion 𝚫141-144 in the RDR2. On the other hand, one VOC P.1 sequence harbors a two amino acid deletion 𝚫189-190; two B.1.1.33(E484K) sequences carried deletions 𝚫141-144, 𝚫211 and 𝚫256-258, and four B.1.1.28 sequence displayed a four amino acid insertion ins214ANRN. We also identified B.1.1.28 ins214ANRN variants sharing six out of 10 P.1 lineage-defining mutations in the Spike protein (L18F, P26S, D138Y, K417T, E484K, N501Y) as well as P.1 lineage-defining mutations in the NSP3 (K977Q), NS3 (S253P) and N (P80R) proteins, thus defined as P.1-like variants. Inspection of sequences available at EpiCoV database in the GISAID (https://www.gisaid.org/) at March 1st, 2021, revealed one B.1.1.28 from the Amazonas state and three P.1 sequences from the Bahia state with deletion 𝚫144 (Table 1). All three P.1 𝚫144 sequences from Bahia were recovered from individuals reporting a travel history to the Amazonas state 18.

Table 1. SARS-CoV-2 Brazilian variants with indels at NTD of the Spike protein.

Sample(s) Lineage NTD Indel RBD GISAID ID
AM-FIOCRUZ-20842572LS/2020* B.1.1.28 𝚫144 - EPI_ISL_1068132
MG-FIOCRUZ-8180/2021 P.2 𝚫144 E484K EPI_ISL_1219137
BA53/2021*, BA54/2021*, BA55/2021*, BA-FIOCRUZ-7029/2021* P.1 𝚫144 K417T E484K N501Y EPI_ISL_1067729 EPI_ISL_1067733 EPI_ISL_1067734 EPI_ISL_1219136
AL-FIOCRUZ-4795/2021, PR-FIOCRUZ-5273/2021 P.1 𝚫144 K417T E484K N501Y EPI_ISL_1219134 EPI_ISL_1219133
AL-FIOCRUZ-4786/2021* P.1 𝚫189-190 K417T E484K N501Y EPI_ISL_1219135
MA-FIOCRUZ-6871/2021, MA-FIOCRUZ-6874/2021 B.1.1.33(E484K) 𝚫141-144 𝚫211 𝚫256-258 V445A E484K EPI_ISL_1181371 EPI_ISL_1181370
AM-FIOCRUZ-20897269OP*, AM-FIOCRUZ-20897281WS*, AM-FIOCRUZ-21840593CL*, PR-FIOCRUZ-5241/2021 B.1.1.28 (P.1-like) ins214ANRN K417T E484K N501Y EPI_ISL_1068256 EPI_ISL_1219132 EPI_ISL_1261122 EPI_ISL_1261123

*Patient from *Amazonas state or traveler returning from Amazonas state.

The Maximum Likelihood (ML) phylogenetic analyses showed that P.1 variants 𝚫141-144 were intermixed among non-deleted sequences (Fig. 1A). The four P.1 𝚫144 sequences detected in Bahia state; however, branched in a subclade (aLRT = 77%) together with the 𝚫189-190 variant and the other two lineages P.1 sequences that share the synonymous mutation A18945G (Fig. 1A). The four P.1-like ins214ANRN and the two B.1.1.33(E484K) 𝚫141-144/211/256-258 variants also clustered in highly supported (aLRT = 100%) monophyletic clades (Fig. 1A and B). These findings suggest that P.1 𝚫141-144 variants resulted from independent convergent NTD deletions events, while P.1 𝚫144, P.1-like ins214ANRN and B.1.1.33(E484K) 𝚫141-144/211/256-258 variants might represent newly emergent VOIs or VOCs. It is interesting to note that most P.1 sequences with NTD deletions were detected in individuals from or with travel history to the Amazonas state.

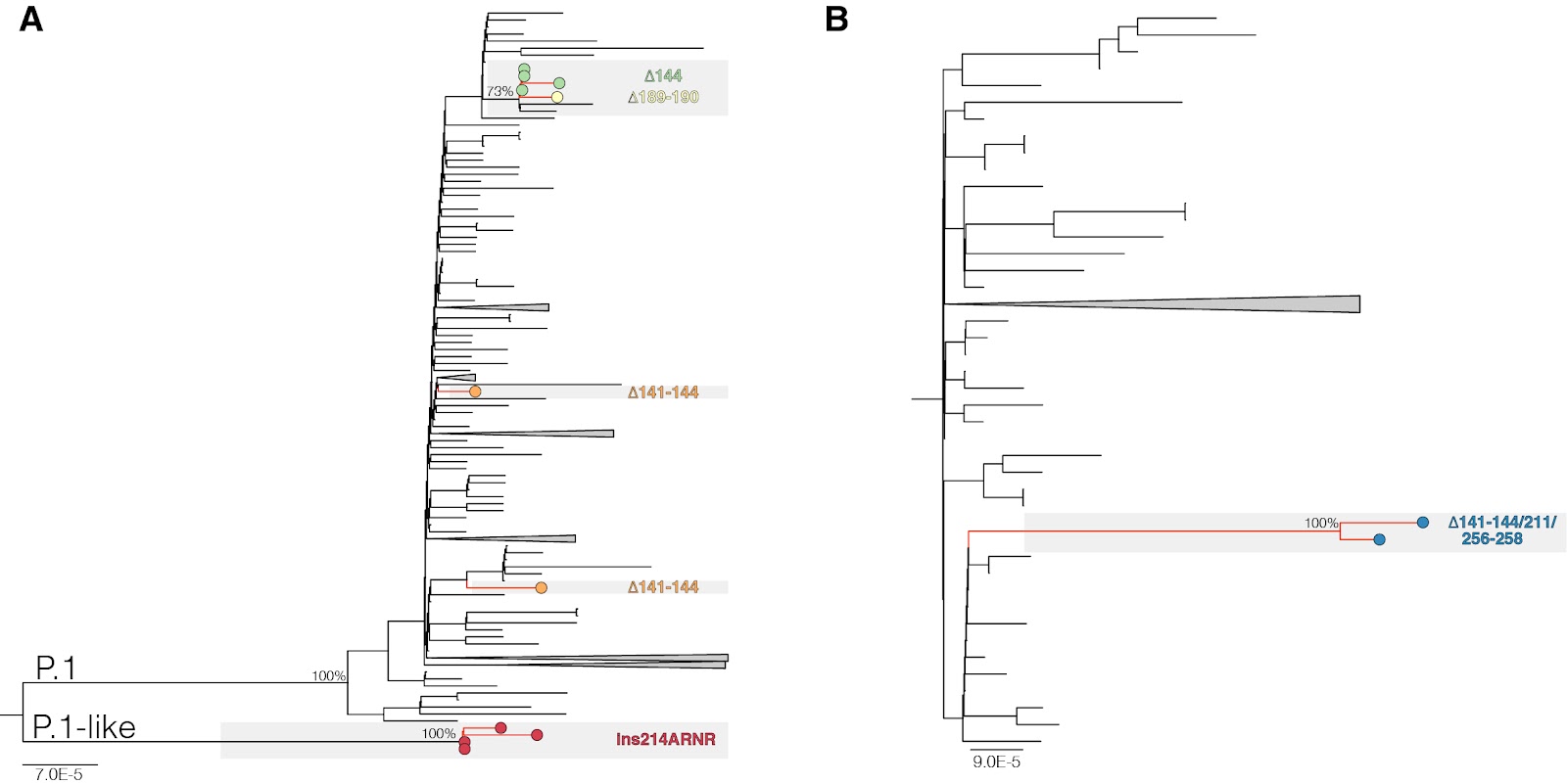

Figure 1. ML phylogenetic tree of whole-genome lineage P.1/P.1-like (A) and B.1.1.33 (B) Brazilian sequences showing the recurrent emergence of deletions at the NTD of the S protein. Tip circles representing the SARS-CoV-2 sequences with NTD indels are colored as indicated. The trees were rooted at the midpoint and branch lengths are drawn to scale with the left bar indicating nucleotide substitutions per site. For visual clarity, some clades are collapsed into triangles.

While SARS-CoV-2 variants harboring NTD deletions at RDR2 and RDR4 have emerged in many different lineages globally, the ins214 in the S protein is a more rare event. Our search of SARS-CoV-2 sequences available at EpiCoV database in the GISAID (https://www.gisaid.org/) at March 1st retrieved only 146 SARS-CoV-2 sequences of lineages A.2.4 (n = 52), B (n = 3), B.1 (n = 7), B.1.1.7 (n = 1), B.1.177 (n = 1), B.1.2 (n = 1), B.1.214 (n = 80) and B.1.429 (n = 1) that displayed an insert motif of three to four amino acids (AKKN, KLGB, AQER, AAG, KFH, KRI, and TDR) in position 214 (Appendix Table 1.pdf (13.2 KB). Most ins214 motifs were unique, except ins214TDR, which seems to have arisen independently in B.1 and B.1.214. With the only exception of one lineage B sequence sampled in March 2020, all SARS-CoV-2 ins214 variants were only detected since November 2020, and its frequency increased in 2021 mainly due to the recent dissemination of lineage A.2.4 ins214AAG in Central and North America and lineage B.1.214 ins214TDR in Europe.

Next, we aligned the S protein of representative sequences of SARS-CoV-2 lineages with NTD indels and SARS-CoV-2-related coronavirus (SC2r-CoV) lineages from bats and pangolins 19. Inspection of the alignment confirms that most NTD indels detected in the SARS-CoV-2 lineages occur within IR previously defined in sarbecovirus (Fig. 2). The 𝚫141-144 occurs in the IR-3 located in the central part of the NTD, where some bats SC2r-CoV also have deletions. The ins214 occurs in the IR-4 where an insertion of four amino acids was detected in three bat SC2r-CoV isolated in China (RmYN02, ins214GATP), Thailand (RacCS203, ins214GATP), and Japan (Rc-o319, ins214GATS). Despite amino acid motifs at ins214 were very different across SARS-CoV-2 and SC2r-CoV lineages, the insertion size was conserved (3-4 amino acids). The 𝚫256-258 occurs near the IR-5, where some bat and pangolin SC2r-CoV lineages also displayed deletions. Thus, the NTD regions that are prone to gain indels during viral transmission among animals are the same as those detected during transmissions in humans.

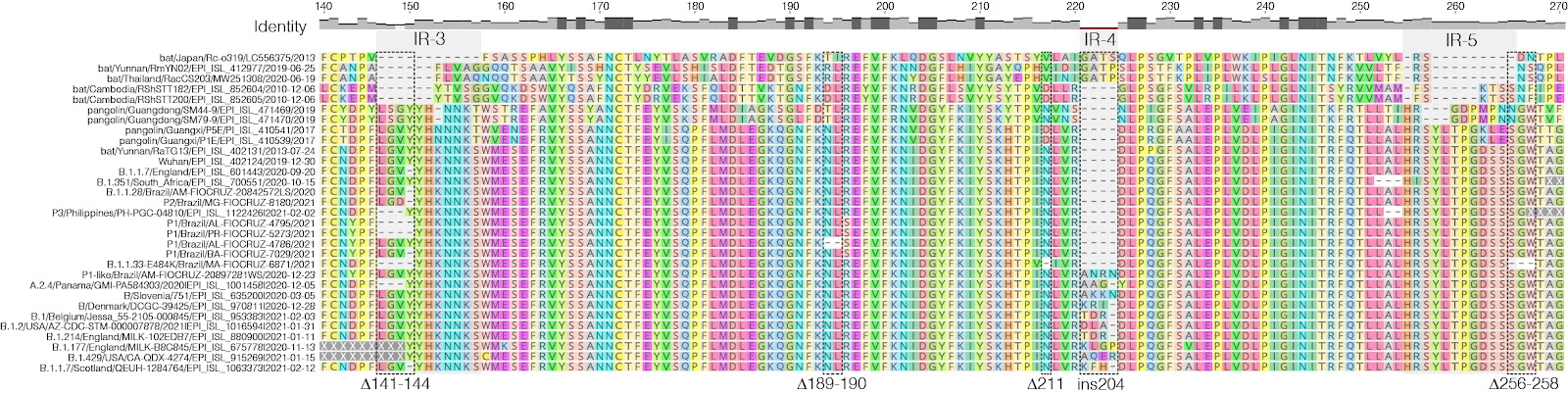

Figure 2. Amino acid alignment of positions 140-270 of the S protein of representative sequences of SARS-CoV-2 lineages harboring indels in the NTD and SARS-CoV-2-related coronavirus (SC2r-CoV) from bats and pangolins. IRs positions (gray shaded areas) are approximations due to the high genetic variability in these alignment positions. Dotted rectangles highlight the indels identified in this study. The identity level estimated for each position of the alignment is displayed at the top.

Epitope mapping showed that neutralizing antibodies are primarily directed against the RBD and NTD of the S protein 9,20–23. Some of the RBD mutations (K417T and E484K) detected in the VOCs and VOIs circulating in Brazil have been associated with increased resistance to neutralization by mAbs, or polyclonal sera from convalescent and vaccinated subjects 24–27. The RDR2 𝚫144 and RDR4 𝚫242-244 deletions observed in VOCs B.1.1.7 and B.1.35, respectively, are located in the N3 (residues 141 to 156) and N5 (residues 246 to 260) loops that composes the NTD antigenic-supersite 28,29 and confers resistance to neutralization by anti-NTD mAbs 3,9,10,30. Moreover, in vitro co-incubation of SARS-CoV-2 with highly neutralizing plasma from COVID-19 convalescent patient, has revealed an incremental resistance to neutralization followed by the stepwise acquisition of indels at N3/N5 loops 31. Notably, SARS-CoV-2 challenge in hamsters previously treated with anti-NTD mAbs revealed a selection of two escape mutants harboring NTD deletions 𝚫143-144 and 𝚫141-144 14. Thus, NTD indels might represent a mechanism of ongoing adaptive evolution of VOC and VOI circulating in Brazil to escape from dominant neutralizing antibodies directed against the NTD antigenic-supersite.

To test this hypothesis, we performed a modeling analysis of the binding interface between wildtype/indels NTD variants and the NTD-directed neutralizing antibody (NAb) 2-51 derived from a convalescent donor 20. The NAb 2-51 makes several contacts with the wildtype NTD antigenic-supersite (EPI_ISL_402124), primarily through the heavy-chain (Fig. 3). The loops N3 and N5 play a pivotal role in the binding process with a predominance of hydrophobic contacts and dispersion interactions in N5 and saline interactions in N3. Our result shows that deletions at RDR 2 (𝚫144, 𝚫141-143) and RDR4 (𝚫242-244) impact the loops’ size and conformation, disrupting the native contacts and reducing the interacting hydrophobic surface accessible area, mainly due to the loss of the hydrophobic pocket (Figure S1.pdf (276.8 KB)). Indels around the N3/N5 loops resulted in a significant loss of interactions (both electrostatic and hydrophobic) (Table 2) that will dramatically impact the binding free energy, and therefore the binding affinity, between those NTD deletion variants and the NAb 2-51. Although NTD indels 𝚫189-190 and ins214ANRN did not affect the NTD antigenic-supersite, they occur at putative epitope regions covering residues 168/173-188 and 209-216 (Appendix Table 2.pdf (62.8 KB) ) and leads to conformational changes in exterior loops (Figure S1 G-H) which might affect Ab binding outside the antigenic-supersite. These findings suggest that NTD deletions 𝚫144, 𝚫141-143, and 𝚫242-244 here detected probably abrogate the binding of NAb directed against the NTD antigenic-supersite and confirm that deletions at RDRs 2/4 are an essential mechanism for SARS-CoV-2 immune evasion 3,14.

Figure 3. List of native interactions showed onto the 3D structure of the S protein NTD targeted by a natural mAb. Cartoon representation of the structure of the NTD protein complexed to the NAb 2-51. The NTD is colored in pink; the heavy and light chains of the NAb 2-51 are colored in gray and green, respectively. The insets show a close-up of the binding interface of the loops N3 and N5 interacting with the variable chains of the NAb 2-51. The N5 loop representation is also rotated 180° around its z-axis. Residues making contact in the interface are depicted in the licorice representation, with carbon atoms in cyan, nitrogen atoms in blue and oxygen atoms in red. The dotted lines indicate the interacting residues-pair.

Table 2. Impact of indels on the binding between SARS-CoV-2 NTDs and NAb 2-51, expressed as loss of putative interactions.

Variant ΔH-bond ΔSalt-bridge Δpi-stacking ΔHydrophobic SASA [Å2] Native Contacts Lost (NTD - Ab)
P.1 𝚫189-190 0 0 0 0 -
P.1-like ins214ANRN 0 0 0 0 -
B.1.1.28 𝚫144 -2 -3 -1 -1 K147-E71, K150-E53, K150-D54, Y145-Y98
P.2 𝚫144 -2 -3 -1 -104 K147-E71, K150-E53, K150-D54, Y145-Y98
P.1 𝚫144 -2 -3 -1 -111 K147-E71, K150-E53, K150-D54, Y145-Y98
P.1 𝚫141-144 -2 -3 -1 -313 K147-E71, K150-E53, K150-D54, Y145-Y98
B.1.1.33 𝚫141-144 𝚫256-258 -3 -3 -1 -439 Y147-E71, K150-E53, K150-D54, Y145-Y98, D253-S56, P251-P55, P251-L46, P251-Y100

Recent genomic findings are showing a sudden landscape change in SARS-CoV-2 evolution since October 2020, coinciding with the independent emergence of VOCs carrying multiple convergent amino acid replacements at the RBD of the S protein 32. One hypothesis is that such a major selection pressure shift on the virus genome is driven by the increasing human population immunity worldwide acquired from natural SARS-CoV-2 infection. Our findings suggest that SARS-CoV-2 is continuously adapting in Brazil and that RDRs 2/4 variants here detected might have evolved to escape from NAb against NTD supersite and could be even more resistant to neutralization than the parental P.1, P.2, and B.1.1.33(E484K) viruses. The sequential evolution steps observed in Brazil recapitulates the pattern observed in South Africa where the VOC B.1.351 first acquired key RBD mutations (E484K and N501Y) and some weeks later the NTD deletion 𝚫242-244 7. These findings highlight the urgent need to address the SARS-CoV-2 vaccines’ efficacy towards those emergent SARS-CoV-2 variants and the risk of ongoing uncontrolled community transmission of SARS-CoV-2 in Brazil for the generation of more transmissible variants. Furthermore, the recurrent emergence of NTD ins214 variants in different SARS-CoV-2 lineages circulating in the Americas and Europe since November 2020 deserves further attention.

References

1 Avanzato VA, Matson MJ, Seifert SN et al. Case Study: Prolonged Infectious SARS-CoV-2 Shedding from an Asymptomatic Immunocompromised Individual with Cancer. Cell 2020; 183: 1901-1912.e9.

2 Choi B, Choudhary MC, Regan J et al. Persistence and Evolution of SARS-CoV-2 in an Immunocompromised Host. N Engl J Med 2020; 383: 2291–2293.

3 McCarthy KR, Rennick LJ, Nambulli S et al. Recurrent deletions in the SARS-CoV-2 spike glycoprotein drive antibody escape. Science 2021; 6950: 6–6.

4 Kemp SA, Collier DA, Datir RP et al. SARS-CoV-2 evolution during treatment of chronic infection. Nature 2021; : 1–10.

5 Spike protein mutations in novel SARS-CoV-2 ‘variants of concern’ commonly occur in or near indels. Virological. 2021.https://virological.org/t/spike-protein-mutations-in-novel-sars-cov-2-variants-of-concern-commonly-occur-in-or-near-indels/605 (accessed 14 Mar2021).

6 Spike protein sequences of Cambodian, Thai and Japanese bat sarbecoviruses provide insights into the natural evolution of the Receptor Binding Domain and S1/S2 cleavage site. Virological. 2021.https://virological.org/t/spike-protein-sequences-of-cambodian-thai-and-japanese-bat-sarbecoviruses-provide-insights-into-the-natural-evolution-of-the-receptor-binding-domain-and-s1-s2-cleavage-site/622 (accessed 14 Mar2021).

7 Tegally H, Wilkinson E, Giovanetti M et al. Emergence of a SARS-CoV-2 variant of concern with mutations in spike glycoprotein. Nature 2021; : 1–8.

8 Preliminary genomic characterisation of an emergent SARS-CoV-2 lineage in the UK defined by a novel set of spike mutations - SARS-CoV-2 coronavirus / nCoV-2019 Genomic Epidemiology. Virological. 2020.https://virological.org/t/preliminary-genomic-characterisation-of-an-emergent-sars-cov-2-lineage-in-the-uk-defined-by-a-novel-set-of-spike-mutations/563 (accessed 14 Mar2021).

9 Wang R, Zhang Q, Ge J et al. Spike mutations in SARS-CoV-2 variants confer resistance to antibody neutralization. bioRxiv 2021; : 2021.03.09.434497.

10 Wang P, Nair MS, Liu L et al. Antibody Resistance of SARS-CoV-2 Variants B.1.351 and B.1.1.7. bioRxiv 2021; : 2021.01.25.428137.

11 Collier DA, De Marco A, Ferreira IATM et al. Sensitivity of SARS-CoV-2 B.1.1.7 to mRNA vaccine-elicited antibodies. Nature 2021; : 1–8.

12 Gobeil S, Janowska K, McDowell S et al. Effect of natural mutations of SARS-CoV-2 on spike structure, conformation and antigenicity. bioRxiv 2021; : 2021.03.11.435037.

13 Wang P, Wang M, Yu J et al. Increased Resistance of SARS-CoV-2 Variant P.1 to Antibody Neutralization. bioRxiv 2021; : 2021.03.01.433466.

14 McCallum M, Marco AD, Lempp FA et al. N-terminal domain antigenic mapping reveals a site of vulnerability for SARS-CoV-2. Cell 2021; 0. doi:10.1016/j.cell.2021.03.028.

15 Genomic characterisation of an emergent SARS-CoV-2 lineage in Manaus: preliminary findings - SARS-CoV-2 coronavirus / nCoV-2019 Genomic Epidemiology. Virological. 2021.https://virological.org/t/genomic-characterisation-of-an-emergent-sars-cov-2-lineage-in-manaus-preliminary-findings/586 (accessed 14 Mar2021).

16 Voloch CM, da Silva Francisco R, de Almeida LGP et al. Genomic characterization of a novel SARS-CoV-2 lineage from Rio de Janeiro, Brazil. J Virol 2021. doi:10.1128/JVI.00119-21.

17 Resende PC, Gräf T, Paixão ACD et al. A potential SARS-CoV-2 variant of interest (VOI) harboring mutation E484K in the Spike protein was identified within lineage B.1.1.33 circulating in Brazil. bioRxiv 2021; : 2021.03.12.434969.

18 Tosta S, Giovanetti M, Nardy VB et al. Early genomic detection of SARS-CoV-2 P.1 variant in Northeast Brazil. medRxiv 2021; : 2021.02.25.21252490.

19 Wacharapluesadee S, Tan CW, Maneeorn P et al. Evidence for SARS-CoV-2 related coronaviruses circulating in bats and pangolins in Southeast Asia. Nat Commun 2021; 12: 972.

20 Liu L, Wang P, Nair MS et al. Potent neutralizing antibodies against multiple epitopes on SARS-CoV-2 spike. Nature 2020; 584: 450–456.

21 Voss WN, Hou YJ, Johnson NV et al. Prevalent, protective, and convergent IgG recognition of SARS-CoV-2 non-RBD spike epitopes in COVID-19 convalescent plasma. bioRxiv 2020; : 2020.12.20.423708.

22 Piccoli L, Park Y-J, Tortorici MA et al. Mapping Neutralizing and Immunodominant Sites on the SARS-CoV-2 Spike Receptor-Binding Domain by Structure-Guided High-Resolution Serology. Cell 2020; 183: 1024-1042.e21.

23 Barnes CO, West AP, Huey-Tubman KE et al. Structures of Human Antibodies Bound to SARS-CoV-2 Spike Reveal Common Epitopes and Recurrent Features of Antibodies. Cell 2020; 182: 828-842.e16.

24 Greaney AJ, Loes AN, Crawford KHD et al. Comprehensive mapping of mutations in the SARS-CoV-2 receptor-binding domain that affect recognition by polyclonal human plasma antibodies. Cell Host Microbe 2021; 29: 463-476.e6.

25 Hoffmann M, Arora P, Groß R et al. SARS-CoV-2 variants B.1.351 and B.1.1.248: Escape from therapeutic antibodies and antibodies induced by infection and vaccination. bioRxiv 2021; : 2021.02.11.430787.

26 Baum A, Fulton BO, Wloga E et al. Antibody cocktail to SARS-CoV-2 spike protein prevents rapid mutational escape seen with individual antibodies. Science 2020; 369: 1014–1018.

27 Nelson G, Buzko O, Spilman P, Niazi K, Rabizadeh S, Soon-Shiong P. Molecular dynamic simulation reveals E484K mutation enhances spike RBD-ACE2 affinity and the combination of E484K, K417N and N501Y mutations (501Y.V2 variant) induces conformational change greater than N501Y mutant alone, potentially resulting in an escape mutant. bioRxiv 2021; : 2021.01.13.426558.

28 Cerutti G, Guo Y, Zhou T et al. Potent SARS-CoV-2 Neutralizing Antibodies Directed Against Spike N-Terminal Domain Target a Single Supersite. bioRxiv 2021; : 2021.01.10.426120.

29 Chi X, Yan R, Zhang J et al. A neutralizing human antibody binds to the N-terminal domain of the Spike protein of SARS-CoV-2. Science 2020; 369: 650–655.

30 Wibmer CK, Ayres F, Hermanus T et al. SARS-CoV-2 501Y.V2 escapes neutralization by South African COVID-19 donor plasma. Nat Med 2021; : 1–4.

31 Andreano E, Piccini G, Licastro D et al. SARS-CoV-2 escape in vitro from a highly neutralizing COVID-19 convalescent plasma. bioRxiv 2020; : 2020.12.28.424451.

32 Martin DP, Weaver S, Tegally H et al. The emergence and ongoing convergent evolution of the N501Y lineages coincides with a major global shift in the SARS-CoV-2 selective landscape. medRxiv 2021; : 2021.02.23.21252268.

33 Nascimento VA do, Corado A de LG, Nascimento FO do et al. Genomic and phylogenetic characterisation of an imported case of SARS-CoV-2 in Amazonas State, Brazil. Mem Inst Oswaldo Cruz 2020; 115. doi:10.1590/0074-02760200310.

34 Resende PC, Motta FC, Roy S et al. SARS-CoV-2 genomes recovered by long amplicon tiling multiplex approach using nanopore sequencing and applicable to other sequencing platforms. bioRxiv 2020; : 2020.04.30.069039.

35 Paiva MHS, Guedes DRD, Docena C et al. Multiple Introductions Followed by Ongoing Community Spread of SARS-CoV-2 at One of the Largest Metropolitan Areas of Northeast Brazil. Viruses 2020; 12: 1414.

36 Li H. A statistical framework for SNP calling, mutation discovery, association mapping and population genetical parameter estimation from sequencing data. Bioinforma Oxf Engl 2011; 27: 2987–2993.

37 Gel B, Serra E. karyoploteR: an R/Bioconductor package to plot customizable genomes displaying arbitrary data. Bioinformatics 2017; 33: 3088–3090.

38 Nguyen L-T, Schmidt HA, von Haeseler A, Minh BQ. IQ-TREE: A Fast and Effective Stochastic Algorithm for Estimating Maximum-Likelihood Phylogenies. Mol Biol Evol 2015; 32: 268–274.

39 Larkin M a, Blackshields G, Brown NP et al. Clustal W and Clustal X version 2.0. Bioinforma Oxf Engl 2007; 23: 2947–8.

40 Waterhouse A, Bertoni M, Bienert S et al. SWISS-MODEL: homology modelling of protein structures and complexes. Nucleic Acids Res 2018; 46: W296–W303.

41 Humphrey W, Dalke A, Schulten K. VMD: Visual molecular dynamics. J Mol Graph 1996; 14: 33–38.

42 Leaver-Fay A, Tyka M, Lewis SM et al. ROSETTA3: an object-oriented software suite for the simulation and design of macromolecules. Methods Enzymol 2011; 487: 545–574.

43 Tina KG, Bhadra R, Srinivasan N. PIC: Protein Interactions Calculator. Nucleic Acids Res 2007; 35: W473-476.

44 Krissinel E, Henrick K. Inference of Macromolecular Assemblies from Crystalline State. J Mol Biol 2007; 372: 774–797.

45 Fleishman SJ, Leaver-Fay A, Corn JE et al. RosettaScripts: A Scripting Language Interface to the Rosetta Macromolecular Modeling Suite. PLOS ONE 2011; 6: e20161.

46 Ponomarenko J, Bui H-H, Li W et al. ElliPro: a new structure-based tool for the prediction of antibody epitopes. BMC Bioinformatics 2008; 9: 514.

47 Wrapp D, Wang N, Corbett KS et al. Cryo-EM structure of the 2019-nCoV spike in the prefusion conformation. Science 2020; 367: 1260–1263.

48 Walls AC, Park Y-J, Tortorici MA, Wall A, McGuire AT, Veesler D. Structure, Function, and Antigenicity of the SARS-CoV-2 Spike Glycoprotein. Cell 2020; 181: 281-292.e6.

Methods

SARS-CoV-2 and SARS-CoV-2-related coronavirus (SC2r-CoV) sequences

Our genomic survey of SARS-CoV-2 positive samples sequenced by the Fiocruz COVID-19 Genomic Surveillance Network between 12th March 2020 and 28th February 2021 identified 11 sequences with mutations of concern in the RBD and indels in the NTD (Table 1). The SARS-CoV-2 genomes were recovered using Illumina sequencing protocols as previously described 33,34. The FASTQ reads obtained were imported into the CLC Genomics Workbench version 20.0.4 (Qiagen A/S, Denmark), trimmed, and mapped against the reference sequence EPI_ISL_402124 available in EpiCoV database in the GISAID (https://www.gisaid.org/). The alignment was refined using the InDels and Structural Variants module. Additionally, the same reads were imported in a different pipeline 35 based on Bowtie2 and bcftools 36 mapping and consensus generation allowing us to further confirm the indels for all samples sequenced in this study. BAM files were used as input to generate sequencing coverage plots onto indels using the Karyoploter R package 37. Sequences were combined with SARS-CoV-2 and SC2r-CoV from bats and pangolins available in the EpiCoV database in GISAID by 1st March 2021 (Appendix Table 1). This study was approved by the FIOCRUZ-IOC (68118417.6.0000.5248 and CAAE 32333120.4.0000.5190) and the Amazonas State University Ethics Committee (CAAE: 25430719.6.0000.5016) and the Brazilian Ministry of the Environment (MMA) A1767C3.

Maximum Likelihood Phylogenetic Analyses

SARS-COV-2 sequences here obtained were aligned with high quality (<1% of N) and complete (>29 kb) lineages B.1.1.28, P.1, P2 and B.1.1.33 sequences that were available in EpiCoV database in the GISAID (https://www.gisaid.org/) at March 1st, 2021 and subjected to maximum-likelihood (ML) phylogenetic analysis using IQ-TREE v2.1.2 38. The S amino acid sequences from selected SARS-CoV-2 and SC2r-CoV lineages available in the EpiCoV database were also aligned using Clustal W 39 adjusted by visual inspection.

Structural Modeling

The resolved crystallographic structure of SARS-CoV-2 NTD protein bound to the neutralizing antibody 2-51 was retrieved from the Protein Databank (PDB) under the accession code 7L2C 28. Missing residues of the chain A, corresponding to the NTD coordinates, were modeled using the user template mode of the Swiss-Model web server (https://swissmodel.expasy.org/) 40 and was used as starting structure for the NTD wildtype. This structure was then used as a template to model the NTD variants using the Swiss-Model. The modeled structures of the NTDs variants were superimposed onto the coordinates of the PDB ID 7L2C to visualize the differences between the NTD-antibody binding interfaces. Image rendering was carried out using Visual Molecular Dynamics (VMD) software 41. The NTD-antibodies complexes were geometry optimized using a maximum of 5,000 steps or until it reached a convergence value of 0.001 REU (Rosetta energy units) using the limited-memory BroydenFletcher-Goldfarb-Shanno algorithm, complying with the Armijo-Goldstein condition, as implemented in the Rosetta suite of software 3.12 42. Geometry optimization was accomplished through the atomistic Rosetta energy function 2015 (REF15), while preserving backbone torsion angles. Protein-protein interface analyses were performed using the Protein Interactions Calculator (PIC) webserver (http://pic.mbu.iisc.ernet.in/)43, the ‘Protein interfaces, surfaces and assemblies’ service (PISA) at the European Bioinformatics Institute (PDBe < PISA < EMBL-EBI) 44 and the InterfaceAnalyzer protocol of the Rosetta package interfaced with the RosettaScripts scripting language 45. For the interface analyzer, the maximum SASA that is allowed for an atom to be defined as buried is 0.01 Å2, with a SASA probe radius of 1.2 Å.

Epitope prediction

Epitopes in the NTD region were predicted by the ElliPro Antibody Epitope Prediction server 46. NTD are shown as predicted linear epitopes when using PDB accession codes 6VXX 47 and 6VSB 48, (structural coordinates corresponding to the entire S protein), along with a minimum score of 0.9, i.e., a highly strict criterion.
